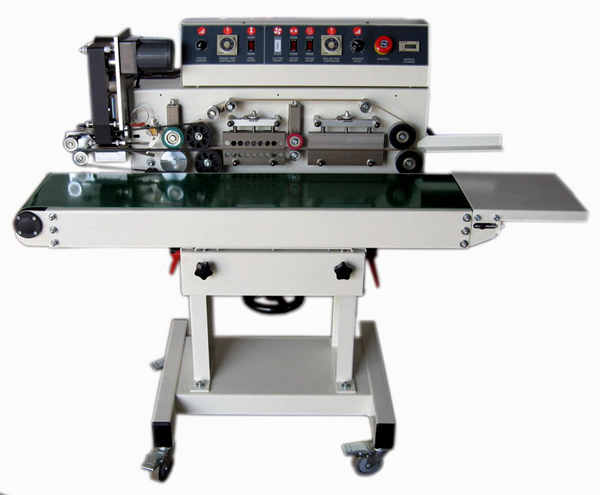

Continuous Band Sealer Series SPM-100P

Continuous Band Sealer with printer is widely used in Food, BIO, Chemical industry and so on. It eliminates the excursion, ungraceful in bag sealing and many problems.
Continuous heating system: Infinite sealing length
Self-adjusting pressure system: Suitable for sealing any type and thickness of the bag
High quality temperature controller: Keep sealing graceful
Adjustable working speed: useful for assembling line with high efficiency
Working cycle counter included
Hot printer: 1 or 2 lines available; carve a seal printer to make the printing clearly
The working table would be working for about 15 minutes(adjustable) when all the switches turned off.
Air suction system: 60-70% air out for a better packing, long life of products and the latter packing process.

Quantity:
  • SPM-100P
  • CHIKO
  • ZK
Model SPM-100P
Power AC 220V , 1Ph , 1040W
Sealing width 10mm
Speed Max 21meter/minute
Conveyor belt specification W220*L1390mm
High temperature cloth specification W20*L1210mm
Size W550*L1050*H1050
Weight 78kg
Print mode Ribbon coding machine


Continuous Band Sealer with printer is widely used in Food, BIO, Chemical industry and so on. It eliminates the excursion, ungraceful in bag sealing and many problems.

Continuous heating system: Infinite sealing length

Self-adjusting pressure system: Suitable for sealing any type and thickness of the bag

High quality temperature controller: Keep sealing graceful

Adjustable working speed: useful for assembling line with high efficiency

Working cycle counter included

Hot printer: 1 or 2 lines available; carve a seal printer to make the printing clearly

The working table would be working for about 15 minutes(adjustable) when all the switches turned off.

Air suction system: 60-70% air out for a better packing, long life of products and the latter packing process.
