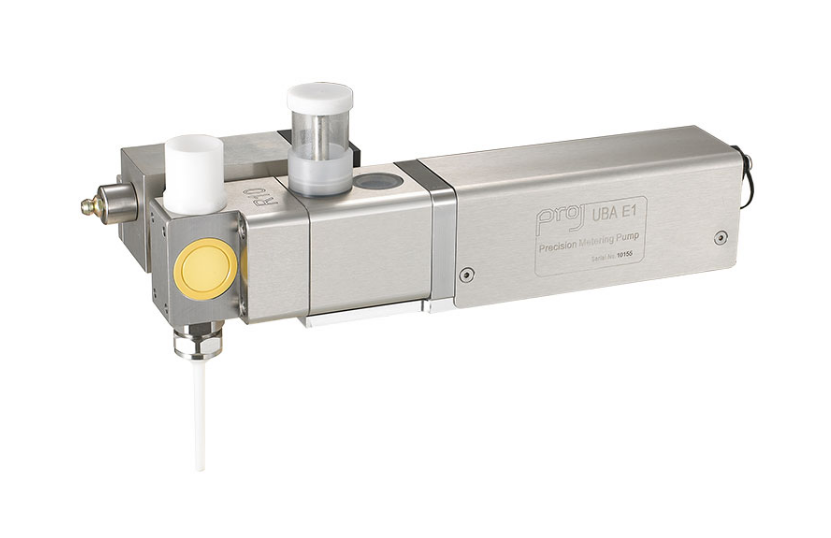

Electric check valve pump E-C
Electric check valve pump E-C
Share to:

Electric check valve pump E-C

* The UBA Check Valve Style Dispensing Pumps are designed for dispensing low to medium viscosity liquid without contain particles.
*  Stepper motor  with precision ball screw driving system provides an extremely precise linear motion control. All dispensing parameters are set by a control box with color touch panel, no need mechanical adjustment. Dispensing accuracy is within ±0.5%.
*  Complete 316 stainless steel pump construction. All pump parts have better rot-proof performance compare with imported pumps, especially on Li-Ion electrolyte application.

Quantity:
Inquire Add to Basket

  • E-C
  • CHIKO
  • ZK

英文

* The UBA Check Valve Style Dispensing Pumps are designed for dispensing low to medium viscosity liquid without contain particles.

*  Stepper motor  with precision ball screw driving system provides an extremely precise linear motion control. All dispensing parameters are set by a control box with color touch panel, no need mechanical adjustment. Dispensing accuracy is within ±0.5%.

*  Complete 316 stainless steel pump construction. All pump parts have better rot-proof performance compare with imported pumps, especially on Li-Ion electrolyte application.

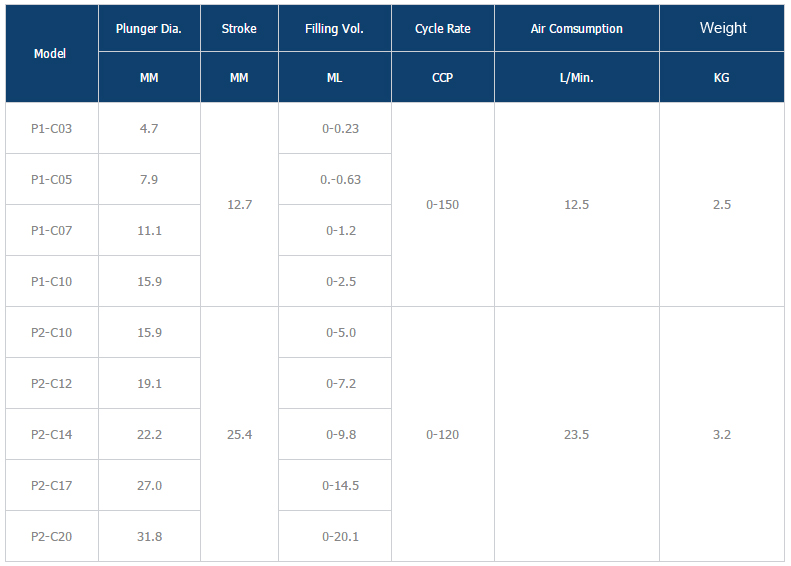

E1-C series stroke 12.7MM; injection volume range: 0 --- 2.5ML

E2-C series stroke 25.4MM; injection volume range: 0 --- 20ML

E3-C series stroke 38.1MM; injection volume range: 0 --- 50ML

E4-C series stroke 25.4 --- 76.8 MM; injection volume range: 0 --- 174ML
