Horizontal Duplex Pre-made Pouch Packing Machine For Powder
Horizontal Duplex Pre-made Pouch Packing Machine For Powder
Share to:

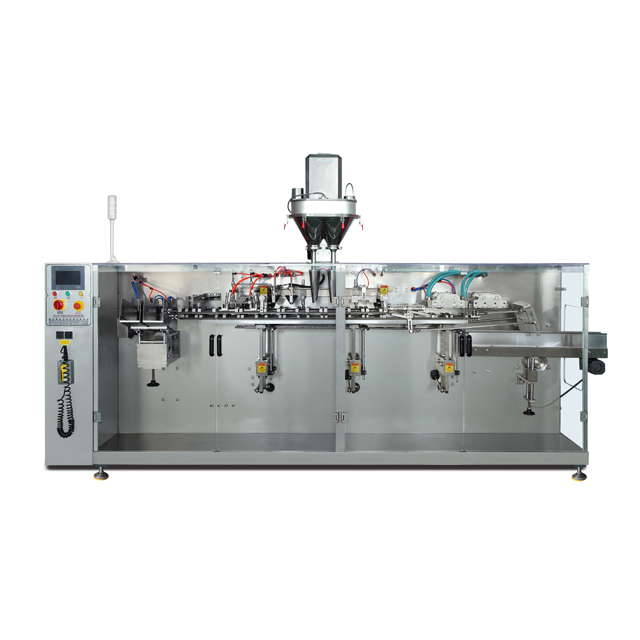

Horizontal Duplex Pre-made Pouch Packing Machine For Powder

Feature:
1,Schneider PLC control, Touch Screen Operation
2,Easily change pouch width and pouch lendth
3,Speed can be adjusted directly on touch screen
4,If bag not open fully,no fill,no seal
5,Easy operation & maintenance
6,Full safety consideration & protection

Quantity:
Inquire Add to Basket

  • ZK-250D
  • CHIKOPACK
  • ZK
Model
ZK-210D
ZK-250D
Pouch type
4 side sealing bag,stand-up pouch with zipper,doypack,die-cut,etc
Pouch size Min
W50mm,L80mm
W50mm,L80mm
Pouch size Max
W100mm,L290mm
W120mm,L320mm
Bag volume
100g
200g
Ouput
100bags/min
80bags/min
Power
5kw
5.5kw
Voltage
3 phase 380V/50-60HZ
3 phase 380V/50-60HZ
Air supply
0.6MPa
0.6MPa
Control
Schneider PLC
Schneider PLC
Operation
Schneider Touch Screen
Schneider Touch Screen

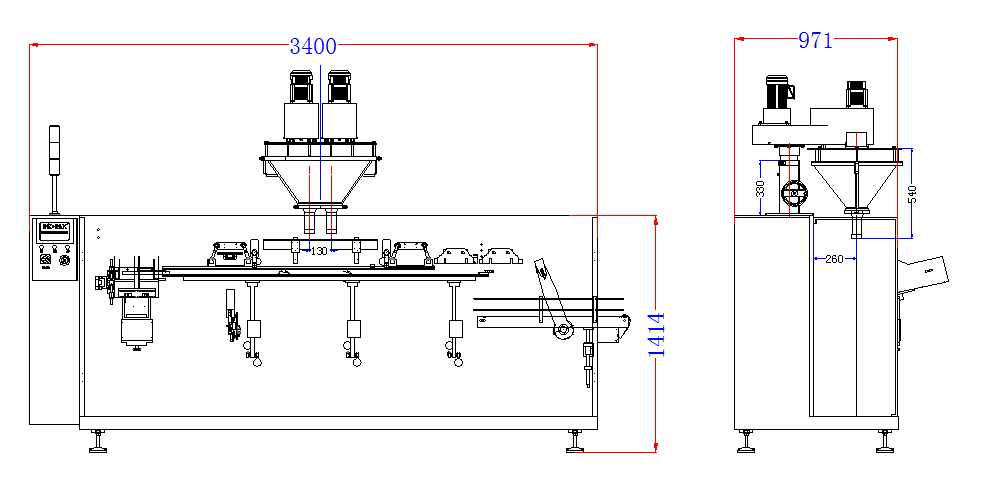

Machine size
L2900*H1200*W1005mm
L3400*H1255*W1005mm
Package size
L3100*H1455*W1205mmL3600*H1500*W1205mm
Net weight
1100kg
1290kg
Gross weight
1210kg
1440kg

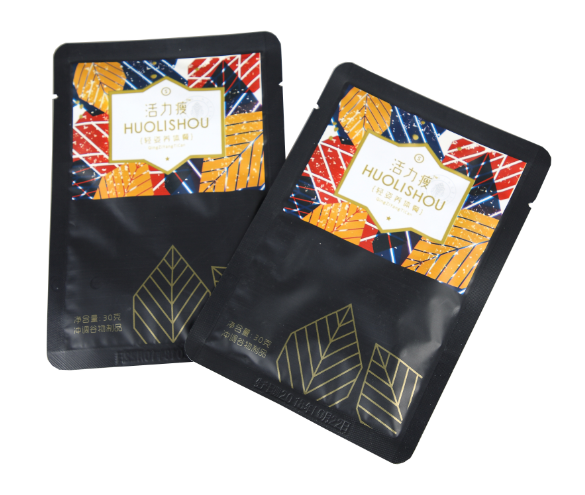

       This is horizontal duplex pre-made pouch machine,installed with dual filler,it is applicable for free flowing powder,such as milk powder,oatmeal powder,soy milk,protein powder,cocoa powder,spice powder,flour powder,sweetner powder,etc into premade pouch,zipper pouch etc.

       This machine is very popular used in daily use product,chemical product,food production packing area.

       Capacity for standard pouch: max 80-100bags/min,for zipper pouch: 50-70 bags/min.

未标题-1 拷贝

1,Schneider PLC control, Touch Screen Operation

2,Easily change pouch width and pouch lendth
3,Speed can be adjusted directly on touch screen
4,If bag not open fully,no fill,no seal
5,Easy operation & maintenance
6,Full safety consideration & protection

QQ图片20180903105524

QQ图片20180903114210
