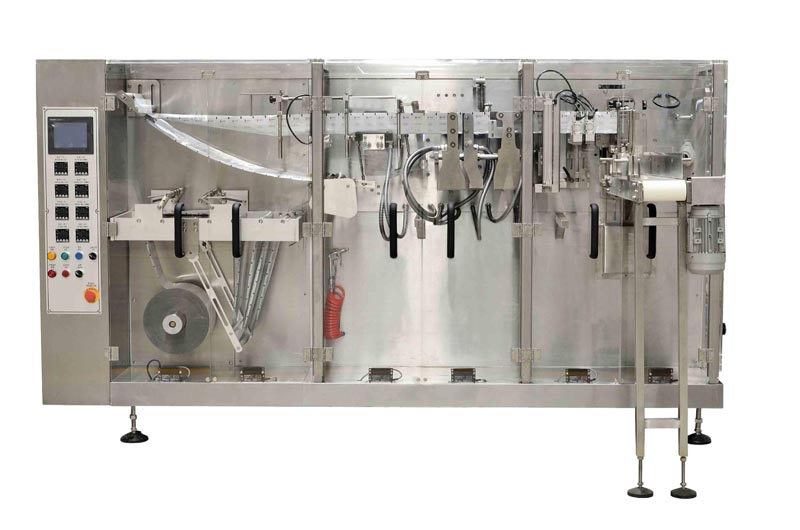

Horizontal Form Fill Seal Machine HP-130
Horizontal Form Fill Seal Machine HP-130
Share to:

Horizontal Form Fill Seal Machine HP-130

Feature:
1,Schneider PLC control, Touch Screen Operation
2,Easily change pouch width and pouch lendth
3,Speed can be adjusted directly on touch screen
4,If bag not open fully,no fill,no seal
5,Easy operation & maintenance
6,Full safety consideration & protection

Quantity:
Inquire Add to Basket

  • HP-130
  • CHIKO
  • ZK

1,Schneider PLC control, Touch Screen Operation

2,Easily change pouch width and pouch lendth
3,Speed can be adjusted directly on touch screen
4,If bag not open fully,no fill,no seal
5,Easy operation & maintenance
6,Full safety consideration & protection



Model

HP-130

HP-130D

Min.Pouch Size

45*70mm

45*70mm

Max.Pouch Size

110*130mm

65*130mm

Max.Speed

80ppm

80*2ppm

Max Fill Volume

60ml

25ml

Filling Station

1

2

Pouch Shape

3-side Seal Flat

3-side Seal Flat

Power

3kw

3kw

Air Consumption

200L/min

200L/min

Machine Size

L2060 *W750*H1260 mm

L2060 *W750*H1260 mm

Machine Weight

300kg

300kg

Optional Function

4-side Seal Tear Notch

4-side Seal Tear Notch

Electrical Requirement

380V 3phase 50Hz

380V 3phase 50Hz

Operation Air Pressure

0.6 Mpa

0.6Mpa

HP-130
