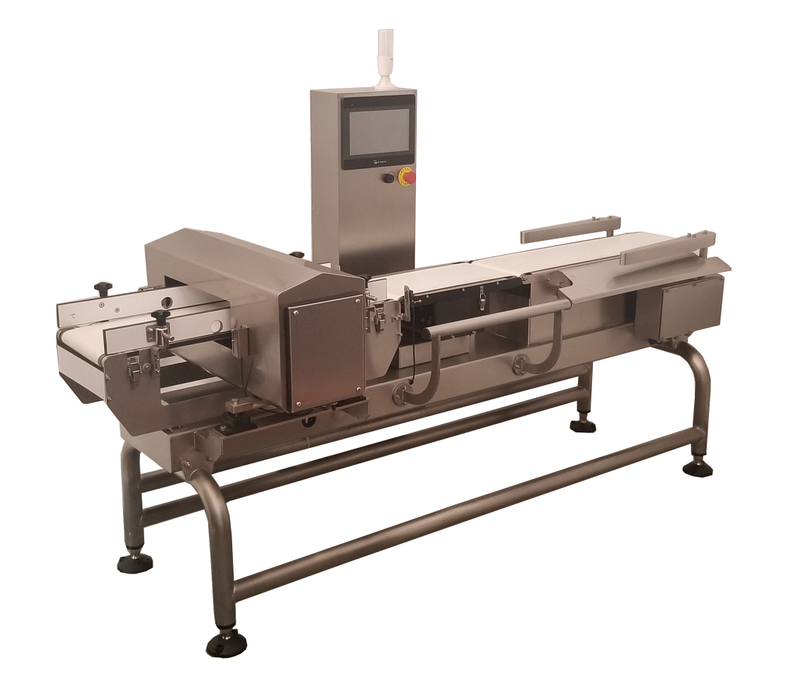

Metal detector&Check detector CW&MD
Metal detector&Check detector CW&MD
Share to:

Metal detector&Check detector CW&MD

The re-inspection gold inspection machine is specially designed for the weight of small and medium-sized packaging, and the requirements for packaging weight and metal foreign objects. It also has high-precision, high-stability and intelligent detection technology based on core invention patents. It adopts imported famous brand components and integrated circuits, adopts high-precision CNC structure design, and cooperates with advanced technologies such as patent weighing algorithm to achieve industry-leading detection performance.

Quantity:
Inquire Add to Basket

  • CW&MD
  • CHIKO
  • ZK

The re-inspection gold inspection machine is specially designed for the weight of small and medium-sized packaging, and the requirements for packaging weight and metal foreign objects. It also has high-precision, high-stability and intelligent detection technology based on core invention patents. It adopts imported famous brand components and integrated circuits, adopts high-precision CNC structure design, and cooperates with advanced technologies such as patent weighing algorithm to achieve industry-leading detection performance.

1. Germany imported ultra-high speed weight sensor, excellent frequency response;

2. Hard-filled technical head with first-class stability and long life guarantee;

3. FPGA hardware filter with intelligent algorithm, excellent weighing processing speed;

4. Metal detection X-R orthogonal decomposition and multiple filtering algorithm, better anti-interference;

5. Intelligent self-learning technology, fully automatic setting of weighing and metal detection parameters, simple setting;

6. Ultra-fast dynamic weight tracking and automatic compensation technology to effectively improve detection stability;

7.DDS full digital and digital signal processing technology to improve metal detection accuracy, can detect iron, stainless steel, copper, aluminum and

Lead and other metal materials;

8.50 product presets, easy product editing and switching;

9. Large-capacity sorting log with data output and trace function;

10.CNC processed structural components, excellent dynamic stability;

11. High quality stainless steel 304 frame, durable.


modelCW&MD
Main materialstainless steel
Weight Range

5~4000g

length

2100mm

Min Scale0.1
Max Check Weight±0.3
Max Through Put100piece/min
Automatic Setting functionIntelligent self-learning
Metering belt specification300*450 mm
conveyer belt leave for ground high780-900
Transport Directionface to screen,left in and out of right
Alarm modeAcousto-optic alarm
Culling modeBlow / push / down / belt fall
PowerACAC220-240V  AC single phase 200w 50/60W
Weighing environmentNo large vibration and air flow
