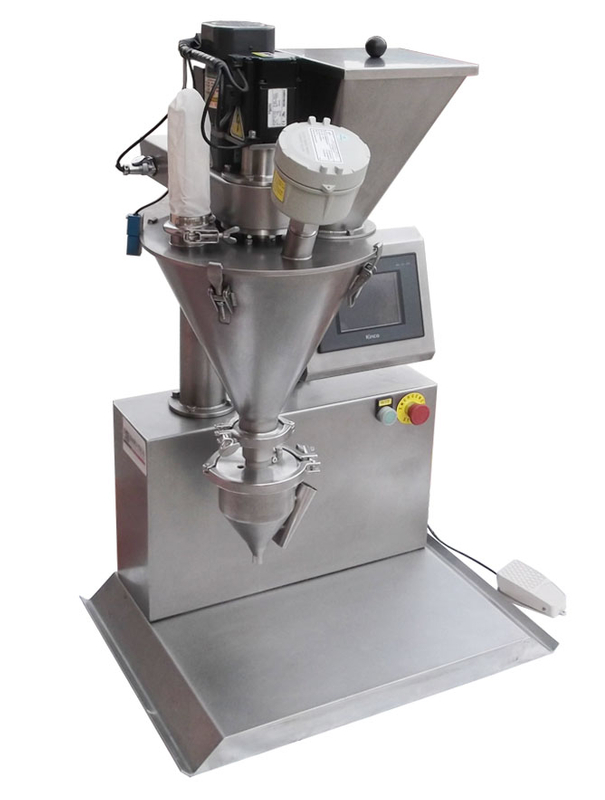

Semi-automatic Auger Filling Machine AF-100
Semi-automatic Auger Filling Machine AF-100
Share to:

Semi-automatic Auger Filling Machine AF-100

This machine is mini set, could be placed on desktop.
Control System: It control by PLC & 5.7-inch color touch screen interface.
Metering screw driven by servo motor, particularly suitable for requests high accuracy, high speed and more stability occasions.
Contact parts could choose SUS316 as optional.
It could save 20 recipes for later using.

Quantity:
Inquire Add to Basket

  • AF-100
  • CHIKO
  • ZK

Designed for micro molecules or powder, applicate widely in food industry, for products such as milk powder, glucose powder, albumen coffee, rice powder and seasonings....etc.


This machine is mini set, could be placed on desktop.

Control System: It control by PLC & 5.7-inch color touch screen interface.

Metering screw driven by servo motor, particularly suitable for requests high accuracy, high speed and more stability occasions.

Contact parts could choose SUS316 as optional.


ModelAF-100
Metering ModelBy auger and load well

Dosing Range

≤100g
Dosing accuracy

±0.3-5%(depend on actual product and filling speed)

Container ModelCan or Bag
Hopper8L
Filling speed

≤80bag/min(according to worker handle speed, normally 25-35bag/min )

Powder&output220V 50/60Hz 1-phase, 0.55KW
Machine Net Weight70kg

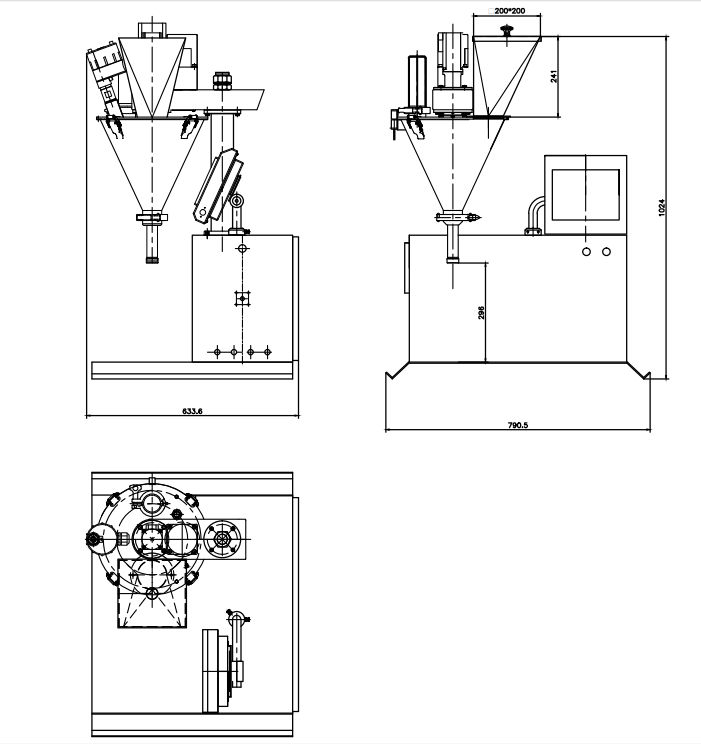

Machine outer dimension680L*515W*940Hmm
