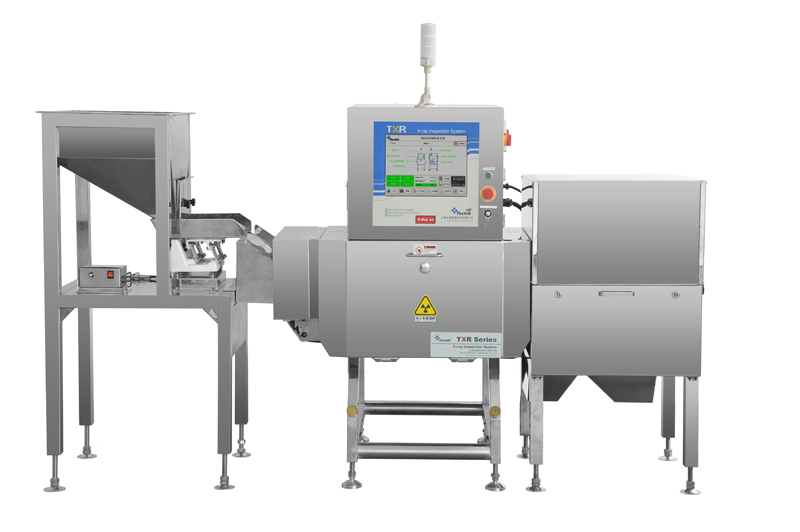

X-Ray Machine For Nut TXR-4080LP
X-Ray Machine For Nut TXR-4080LP
Share to:

X-Ray Machine For Nut TXR-4080LP

A full range of contaminants inspection including metallic, non-metallic contaminants( glass,ceramic, stone, bone, hard rubber, hard plastic , etc.), it is not limited to product attributes, and can detect metallic ,non-metallic packaging and canned goods, and also the inspection will not be affected by temperature, humidity, salt content and so on.

Quantity:
Inquire Add to Basket

  • TXR-4080LP
  • CHIKO
  • ZK
ModelTXR-4080LP

Best Inspection Ability

(With product)

0.5~0.6mm(SUS304 Ball)

1.5~2.0mm(Glass Ball)

1.5~2.0mm(Ceramic Ball)

X-ray tubeMAX.210W/80kV
Max Detecting Height100mm
Max Detecting Width400mm
Conveyor Parameter

Speed:5-50m/min

Width:420mm

Max Height:100mm

Max Load:25kg

ScreenFull-color TFT 15" Touch Screen
O/Swindows XP Professional
ConnectivityLAN port, USB port
Product Management

Complete product log

Product ManagementAuto learning/Manual setting
Image ManagementAuto image save/print/analyses
Power Supply220V,AC,50/60Hz
Body Material

SUS304

PurificationEasy to wash
Cooling methodAir conditioned cooling
Operation Temperature0-40℃
X-ray emissions＜1microsievert per hour
X-ray protectionProtective curtain
Rejector32 tunnel air jet rejector


A full range of contaminants inspection including metallic, non-metallic contaminants( glass,ceramic, stone, bone, hard rubber, hard plastic , etc.), it is not limited to product attributes, and can detect metallic ,non-metallic packaging and canned goods, and also the inspection will not be affected by temperature, humidity, salt content and so on.

 The technical parameter above namely is the result of sensitivity by inspecting only the test sample on the belt. The sensitivity would be affected according to the products being inspected and working condition.
