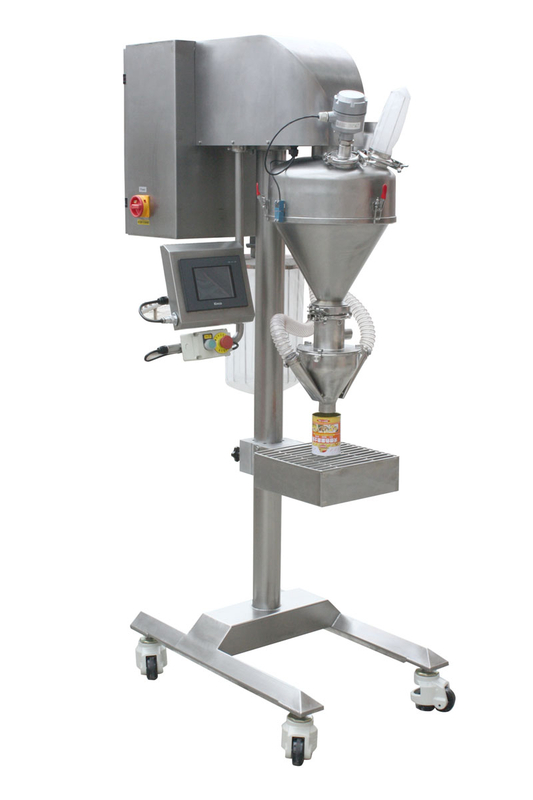

Semi - automatic Auger Filler AF-1000

Easy to operate, low maintenance, long service life
Variable speed auger and agitator drive system
25Liter stainless steel hopper mounted with quick dismantle hand knob
Optional fill head height adjustment
Fully adjustable filling range
Fill by weight as option
Availability:
Quantity:
Inquire Add to Basket

  • AF-1000
  • CHIKO
  • ZK

Designed for micro molecules or powder, applicate widely in food industry, for products such as milk powder, glucose powder, albumen coffee, rice powder and seasonings....etc.


Easy to operate, low maintenance, long service life

Variable speed auger and agitator drive system

25Liter stainless steel hopper mounted with quick dismantle hand knob

Optional fill head height adjustment

Fully adjustable filling range

Fill by weight as option


Model AF-1000
Products Filled

Powder,Small Granules

Fill Speed25-35fills/minute
Containers Filledbags,bottles,jars,can and boxes
Fill Accuracy±1%
Fill Range≤1000g
OperationManual only
Hopper capacity25L
Delivery Timewithin 5 weeks
Special FeaturesSpanner/Dust Collector/SS316
Power ConsumptionSingle Phase,220V,50/60HZ
Voltage1.4KW
Overall Dimension780*730*1690mm
Net Weight150kg
