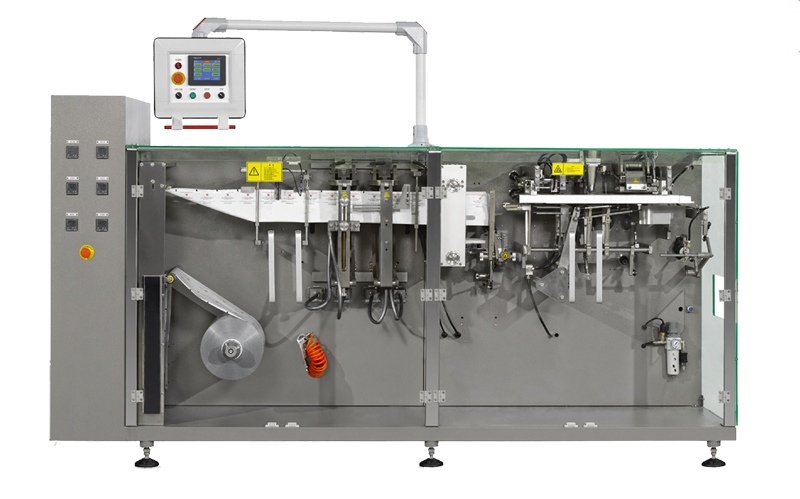

Horizontal Form Fill Seal Machine HP-180

Feature:
1,Schneider PLC control, Touch Screen Operation
2,Easily change pouch width and pouch lendth
3,Speed can be adjusted directly on touch screen
4,If bag not open fully,no fill,no seal
5,Easy operation & maintenance
6,Full safety consideration & protection
Availability:
Quantity:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button

  • HP-180

  • CHIKO

  • ZK

Feature:

1,Schneider PLC control, Touch Screen Operation

2,Easily change pouch width and pouch lendth

3,Speed can be adjusted directly on touch screen

4,If bag not open fully,no fill,no seal

5,Easy operation & maintenance

6,Full safety consideration & protection


Model HP-180
Min.Pouch Size 60*90mm
Max.Pouch Size 180*200mm
Max.Speed 80ppm
Max Fill Volume 360ml
Filling Station 2
Pouch Shape

3-Side Seal Flat

Power 5kw
Air Consumption 0.3m³/min
Machine Size 3500*1080*1450mm
Machine Weight 1500kg
Optional Function 4-Side Seal Flat
Electrical Requirement 380Vpx
Operation Air Pressure 0.6Mpa

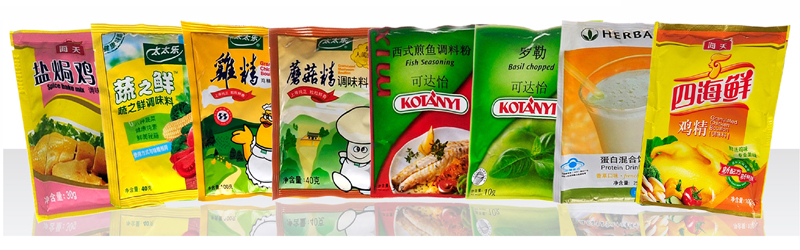

PH-180
