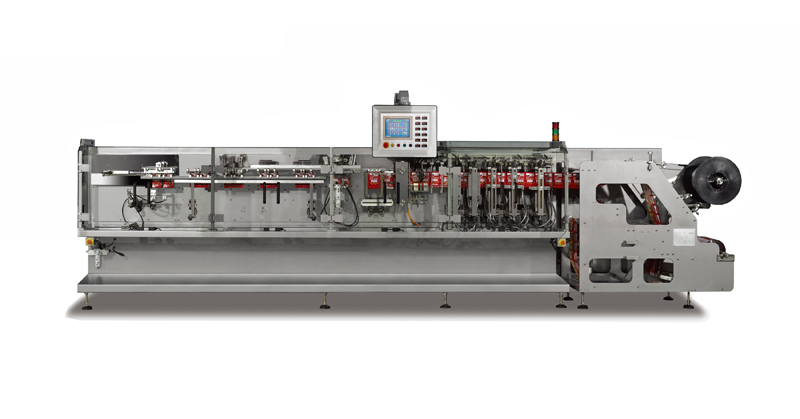

Horizontal Form Fill Seal Machine HPZ-270

Feature:
1,Schneider PLC control, Touch Screen Operation
2,Easily change pouch width and pouch lendth
3,Speed can be adjusted directly on touch screen
4,If bag not open fully,no fill,no seal
5,Easy operation & maintenance
6,Full safety consideration & protection
Availability:
Quantity:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button

  • HPZ-270

  • CHIKO

  • ZK

Feature:

1,Schneider PLC control, Touch Screen Operation

2,Easily change pouch width and pouch lendth

3,Speed can be adjusted directly on touch screen

4,If bag not open fully,no fill,no seal

5,Easy operation & maintenance

6,Full safety consideration & protection


ModelHPZ-270
Min.Pouch Size60*80mm
Max.Pouch Size135*180mm
Max.Speed140ppm
Max Fill Volume160ml
Filling Station2
Pouch Shape

3-Side Seal Zipper Flat

Power9kw
Air Consumption400L/min
Machine Size5200(L)*970(W)*1360(H)mm
Machine Weight2000kg
Optional FunctionHanging Hole Tear Notch
Electrical Requirement380V 3 phase 50 Hz
Operation Air Pressure0.6Mpa


HPZ-270
